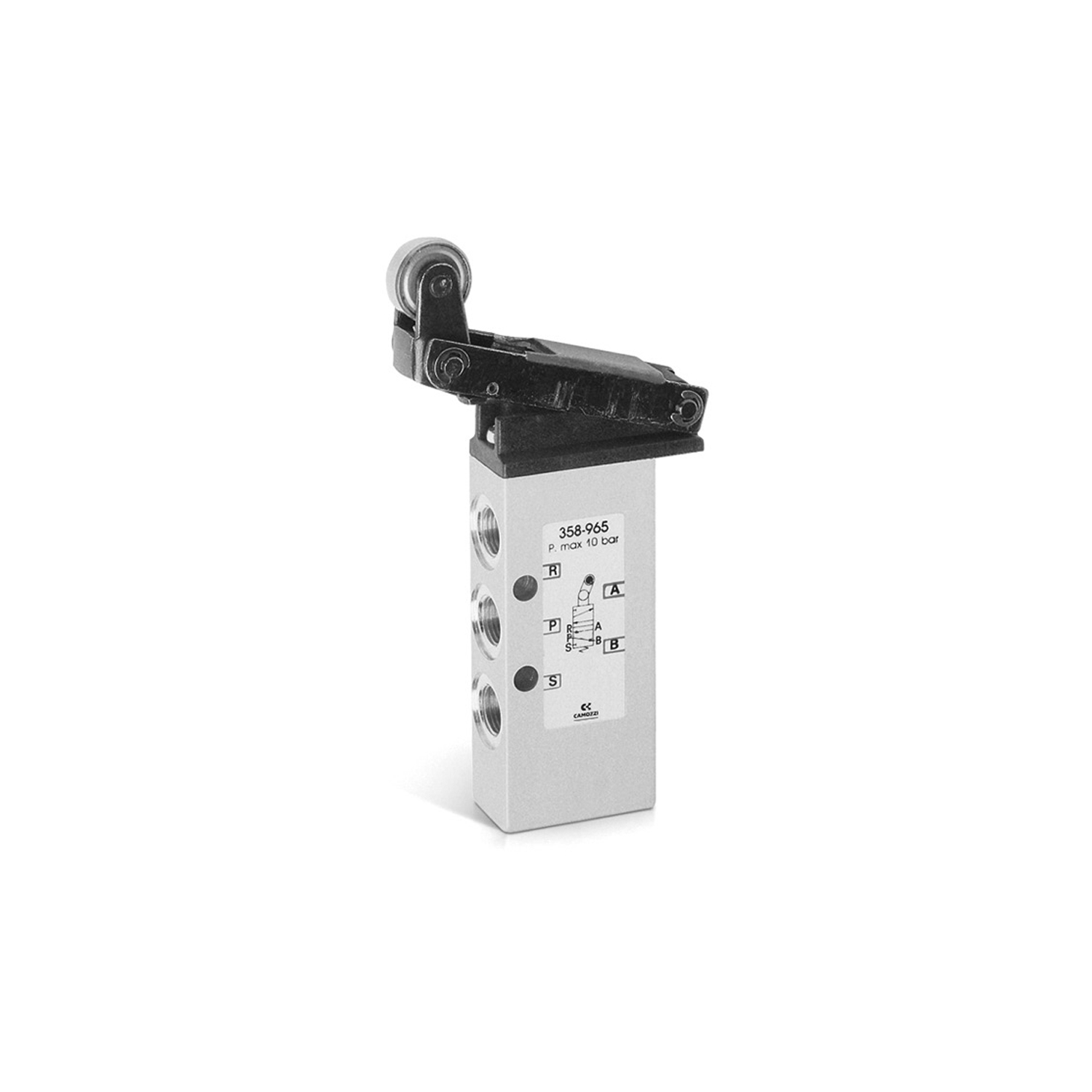

Series 1, 3 – Mechanically Operated Valves

Name: Series 1, 3 - Mechanically Operated Valves - Systel Engineering Controls
Brand: Manual Valves
Availability: InStock

Price range: ₹1,476.60 through ₹5,716.37

These mechanically operated valves have been designed with three different types of actuation:
– plunger
– lever/roller
– unidirectional lever/roller
In each case, return is triggered by a mechanical spring.

Request Specification

Reach Us : Whatsapp Email Call

Series 1,3

Clear

Description
Reviews (0)

Series 1: 3/2-way and 5/2-way, ports G1/8 and G1/4
Series 3: 3/2-way and 5/2-way, ports G1/8

3/2-way monostable valves Series 3 are normally closed in the rest position when pressure is supplied in 1 and are normally open when pressure is supplied on connection 3, the user port 2 remaining unchanged.
5/2-way valves Series 3 can be supplied via the ports 3 and 5 with two different pressures if a cylinder has to be operated using a delivery pressure which is different from the return pressure.
